PROCURAL PE78 FOLD patio doors
- Characteristics
- Technical parameters
A perfect solution for houses, restaurants and cafes where internal and external spaces are seamlessly blended together.
- multiple sash structures available, both inward and outward opening

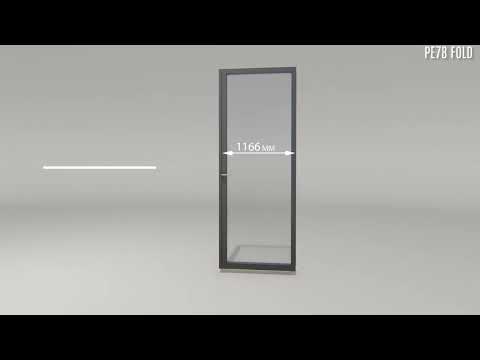

- the three-cavity design of profiles ensures good mechanical durability, enabling large constructions (L ≤ 1200 mm or H ≤ 3500 mm with a maximum sash weight of 120 kg)
- high thermal insulation due to same width 34 mm thermal breaks in frame and sash profiles
- special hardware ensuring end user comfort
- wide glazing range (22 - 60 mm) enables the use of traditional as well as more specialised glazing units
- wide range of threshold solutions
- compatible with other PROCURAL PE78N solutions
- Aluminium profiles EN AW-6060 in acc. with EN 573-3, T66 temper in acc. with EN 515, Al Mg Si 0,5 F22 in acc. with DIN 1725 T1, DIN 17615 T1
- Gaskets EPDM synthetic rubber in acc. with DIN 7863 and ISO 3302-01,E2
- Maximum sash dimensions W ≤ 1200 mm lub H ≤ 3500
- Maximum sash weight 120 kg
- Filling IGUs, thickness: 22 - 60 mm
- Air permeability class 4
- Watertightness 1200Pa
- Resistance to wind load class C3/B3
- Thermal insulation Uf from 1,7 W/m2K, Uw = 1,0 W/m2K (L 2400 x H 2400 mm, Ug = 0,5 W/m2K, triple glazing).
Cross-sections
